Hooking up Jimmy Page Direct Connect series

Hooking up Serial Killer Telecaster

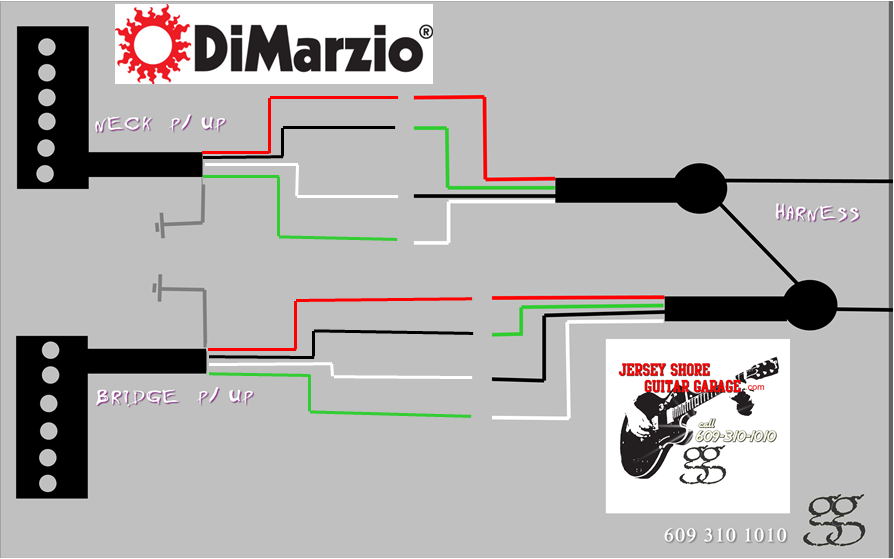

Hooking up Jimmy Page MKIII Pigtail Connections

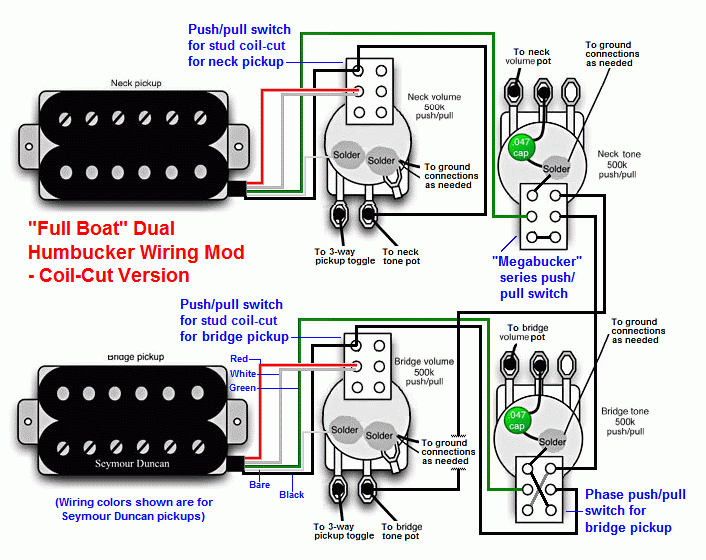

Break down of Jimmy Page switching

PUP SELECTOR SWITCH IN BRIDGE POSITION

* 1. Bridge Humbucker
2. Bridge Shunt (Screw Coil On)
3. Bridge Shunt (Slug Coil On)


** PUP SELECTOR SWITCH IN MIDDLE POSITION

* 4. Neck & Bridge Humbucker Parallel in Phase
5. Neck & Bridge Humbucker Parallel Out Phase
6. Neck Humbucker & Bridge Shunt (Screw Coil On) Parallel In Phase
7. Neck Humbucker & Bridge Shunt (Slug Coil On) Parallel Out Phase
8. Neck Shunt (Screw Coil On) & Bridge Humbucker Parallel In Phase
9. Neck Shunt (Screw Coil On) & Bridge Humbucker Parallel Out Phase
10. Neck Shunt (Screw Coil On) & Bridge Shunt (Screw Coil On) Parallel In Phase
11. Neck Shunt (Screw Coil On) & Bridge Shunt (Slug Coil On) Parallel Out Phase

PUP SELECTOR SWITCH IN NECK POSITION
* 12. Neck Humbucker
13. Neck Shunt (Screw Coil On)
14. Neck & Bridge Humbucker Series In Phase
15. Neck & Bridge Humbucker Series Out Phase
16. Neck Humbucker & Bridge Shunt (Screw Coil On) Series in Phase
17. Neck Humbucker & Bridge Shunt (Slug Coil On) Series Out Phase
18. Neck Shunt (Screw Coil On) & Bridge Humbucker Series In Phase
19. Neck Shunt (Screw Coil On) & Bridge Humbucker Series Out Phase
20. Neck Shunt (Screw Coil On) & Bridge Shunt (Screw Coil On) Series In Phase

21. Neck Shunt (Screw Coil On) & Bridge Shunt (Slug Coil On) Series Out Phase
